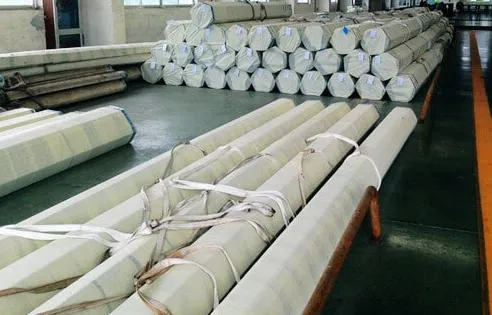

ASTM A312 TP321 Stainless Steel Bright Annealed Pipe

​​ASTM A312 TP321 seamless pipe is a titanium-stabilized austenitic stainless steel pipe specifically designed for high-temperature applications (such as furnaces). It is an austenitic alloy similar to 304 stainless steel, but with titanium content more than five times that of carbon, enhancing its corrosion resistance. It maintains excellent resistance to intergranular corrosion within the temperature range of 800-1500℃F (approximately 450-750℃).​



ASTM A312 TP321 seamless stainless steel pipes, produced using hot-extruded steel billets to form seamless pipes without joints or welds, providing exceptional load-bearing capacity in various environmental conditions. Typically, these pipes are annealed at a temperature of approximately 1605℃F (875℃) and then water-quenched. Surface finishes available include pickling and passivation, polishing, or rolling. Custom lengths, double random lengths, and single random lengths are available, with pipe ends in forms such as Plain End (PE), Beveled End (BE), and Threaded End (TE). All pipes come with Material Test Certificates (MTC) and full certification documentation, including third-party inspection reports (such as UT/RT/PMI).



Grade UNS S32100 Stainless Steel Tubing specification

	ASTM A 312/ ASME SA 312/ EN10216-5
	½ to 6 Inch NB
	0.1 To 60 mm
	SCH 80, SCH 40, SCH XXS, SCH 5, SCH 80S, SCH10, SCH XS, SCH 160 Supplier in Mumbai



S32100 Stainless Steel Tubing Equivalent

		Filler Metal (AWS A5.9 Class)
TP321	S32100	ER321	S32180, W32140





ASTM A312 TP321 Stainless Steel Bright Annealed Seamless Pipe Chemical Requirements

	C			P	S		N
SS 321	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	5(C+N) – 0.70 max
SS 321H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	4(C+N) – 0.70 max



Mechanical Analysis Of SA 312 TP 321 Stainless Steel Tubes

			Yield Strength (0.2%Offset)
8.0 g/cm3	1457 ℃ (2650 ℃F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %



TP321	S32100	1900 ℃F [1040 ℃]



GNEE has nearly 18 years of experience in seamless stainless steel tube production. Every tube undergoes dimensional, surface, PMI, eddy current, or hydrostatic tests. Only high-quality tubes are packaged and delivered to customers worldwide. Our tubing offering covers both imperial and metric sizes, with outer diameters ranging from 1.58 mm to 108 mm. Special sizes are also available upon request.



Mill test certificates will be issued according to EN10204.3

All tubes shall be supplied as per applicable ASTM A312 /A312M Specification.



Packed in bundles or ply wooden box wrapped in plastic, and suitably protected for sea-worthily delivery or as requested.
